Lightweight illuminated bench magnifier

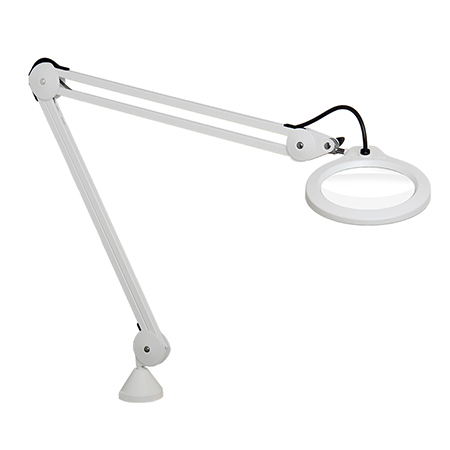

LFM LED G2 is a lightweight magnifier with an all-metal construction, light-emitting diode (LED) light sources, and a flexible spring-balanced arm. It is well suited for professional industrial applications with a need for precise magnification.

LFM LED Lightweight illuminated bench magnifier used for inspection

High performance glass lens for maximum clarity, precision and comfort. High quality self-balancing, flexible arm with edge clamp or weighted base.

Highlights

  • 3 or 5 dioptre (1.75x and 2.25x magnification) options
  • Choice of secondary lenses to increase magnification to a total of 15 dioptre
  • 3-step dimmable illumination from efficient LEDs
  • Automatic shut-off feature for energy efficiency
  • Range of available accessories and mounting options
LFM LED Lightweight illuminated bench magnifier

1.75 – 4.75x

Magnification

ESD and UV

Variants

Full HD

Camera Option

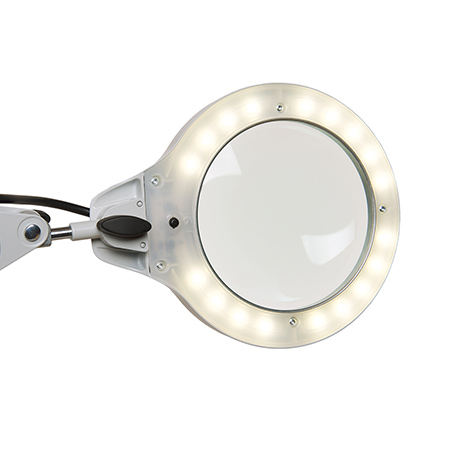

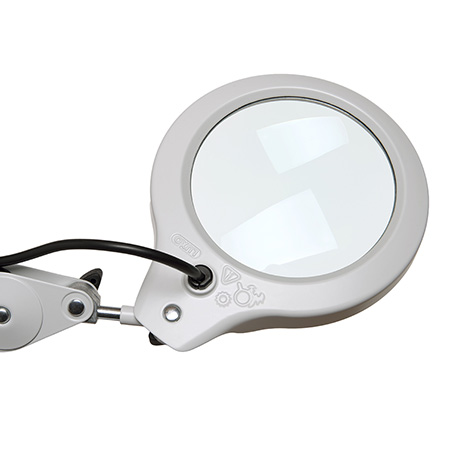

The ø127 mm glass lens is positioned in the middle of a circle of LED light sources. This is a perfect way of illuminating an object, virtually shadows free. LFM LED G2 is supplied with a 3 or 5 dioptre glass lens.

LFM LED Lightweight illuminated bench magnifier
LFM LED illuminated bench magnifier inspection metal industrial part

LFM LED G2 bench magnifiers incorporate the same design excellence adopted throughout Vision Engineering’s award-winning stereo microscopes, providing maximum clarity, flexibility and stability.

Technical

Circus LED Wave LED KFM LED LFM LED G2
3.5D (1.88x) 3.5D (1.88x) 3.0D (1.75x) 3.0D (1.75x)
5.0D (2.25x) 5.0D (2.25x) 5.0D (2.25x) 5.0D (2.25x)
Lens Size
Circus LED 165mm dia.
Wave LED 171mm x 114mm
KFM LED 127mm dia.
LFM LED G2 127mm dia.
  • 4.0D (1x), 6.0D (1.5x), 10.0D (2.5x)
Circus LED Wave LED KFM LED LFM LED G2
x x
Circus LED Wave LED KFM LED LFM LED G2
Type circular L and R 2x semi-circular circular
Dimming Seamless 3-step Seamless 3-step
3D lighting x x x
UV version x x x
Circus LED Wave LED KFM LED LFM LED G2
Edge Mount Bracket
Surface Mount
Table Bushing ✓Y
Floor Stand
Circus LED Wave LED KFM LED LFM LED G2
x x
BenchKam Options
HD camera 720p version
Full HD camera 1080p version
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider

LFM LED G2

Lightweight illuminated bench magnifier

Frequently asked questions

Below you can find some of the most common questions.

Can my Vision LUXO magnify more than 5D?2020-07-13T21:55:19+00:00

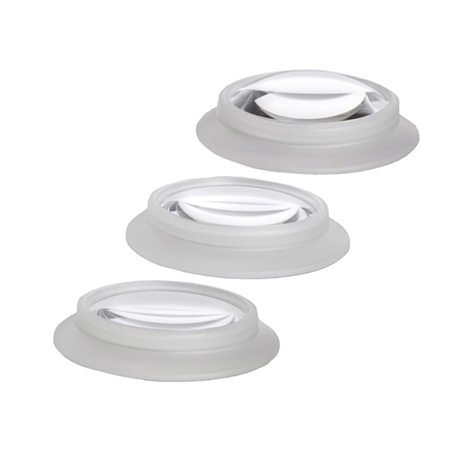

Yes. it is possible to add the STAYS lenses to the magnifiers to increase the magnification. The maximum total magnification possible is 4.75x

What if I can’t fit the edge clamp to my desk?2020-07-13T21:55:38+00:00

The edge clamp has an opening of appoximately 55mm. If a desk is too thick for the edge clamp, table bushing and surface mounts are also available

What is the difference between 3D and 3X?2020-07-13T21:56:31+00:00

Dioptre is the most common unit used for expressing magnification for low magnification optical systems sich as bench magnifiers. It is the same term as is encountered at the optician when calculating magnification for spectacles. 1 dioptre adds 0.25x in magnification. So 3D (3 dioptres) is normal magnification plus 3 lots of 0.25 = 1.75x.

What is the difference between 3D lighting compared to a ring-light?2020-07-13T21:56:14+00:00

Ring-lights are great for giving even illumination and allowing every detail to be seen clearly. 3D lighting allows the introduction of a controlled amount of shadow which helps the brain understand depth within the image.

What is the shadeneck2020-07-13T21:55:58+00:00

The shadeneck is the design feature which covers the neck mechanism with a special gator to prevent FOD falling on the subject. The shadeneck removes the need for locking screws and knobs as it perfectly balances the head whatever the position.

For more frequently asked questions please visit the our support page.
