Capable. Powerful. Adaptable.

EVO Cam is a powerful, versatile, yet easy-to-use, high definition digital microscope. Flexible configuration options deliver excellent image quality and optical magnification up to 725x; digital zoom takes you even further. A wide range of precision objectives and wide-field lenses let you choose a configuration that’s an exact match for your unique and individual needs. It’s everything that you would expect from a Vision Engineering microscope.

EVO Cam II digital microscopes in a row

Consistency and versatility

Consistent quality inspections across multiple units, multiple users and multiple sites, is easily achievable through a range of tools and by sharing of settings between units. Even in a constantly changing business environment, EVO Cam adapts to new roles with push button simplicity, delivering capabilities and predictable results whatever the task.

Exceptional images

A 30:1 optical zoom range, delivering optical magnification up to 725x, lets you see the detail you need to really understand the subject. Use the digital zoom to increase this to an impressive 9000x maximum magnification. Full HD video brings out every detail, and manual and automatic focusing gives you ultra-sharp images every time. Even large subjects which would defeat lesser microscopes are brought into complete top-to-bottom focus thanks to EVO Cam II’s focus stacking capability.

Monitor mounted on digital microscope showing metal precision components

0.8 – 750x

Magnification

Large

Field of View

PC

Control option

Maximum convenience

EVO Cam is built for convenience. A large field of view and long working distance. For example, a large field of view and long working distance lets you examine a wide range of subjects. Ten pre-sets make it easy to share between users across different applications, and a supervisor-setting lock lets you stay in control.

PCB boards under EVO Cam II digital microscope

Precise, referencing measurements

EVO Cam measures complex parts efficiently and quickly using overlays or point-to-point measurement. The overview function enables quick and convenient sample orientation, while overlays and the image comparison feature enable easy comparison with reference marks or sample images. Calibrations, which can be saved in pre-sets, can be tracked through the zoom range, speeding measurement of different size details and removing the need to recalibrate.

Easy image capture

Capture high resolution images at the touch of a button either direct to a USB memory stick, via wireless or direct to a PC. Simple capture and share options aid collaboration, reporting and training.

Four users in a row using EVO-Cam II digital microscope inspecting plastic samples
Electronic PCB component shown magnified on monitor using EVO-Cam II digital microscope

Simple and Intuitive

Out of the box, EVO Cam can be set-up in minutes. Then simply turn the camera on and begin viewing and capturing full HD images. EVO Cam’s intuitive on-screen controls and multiple language options means that it can be used with minimal operator training.

A customised solution

Personalise EVO Cam to your exact requirement by selecting from a comprehensive range of options. A 360˚ rotating viewer for looking around the subject, focus stacking for bringing tall subjects into uniform focus, a UV ring light, sub-stage illumination and a range of filters all help you inspect a wider range of subjects. Add a floating stage for even greater precision and control, and choose from a wide range of stands to make EVO Cam perfect for your application.

Technical

Zoom Ratio 30x

Lens options Magnification range (24” monitor) Working Distance (mm) Max Field of View (mm)
0.45x 2.3x – 68x 160 241 x 134
0.62x 3.1x – 93.7x 106 173 x 96
1.0x 5.0x – 151.2x 85 88 x 57
1.5x 7.6x – 226.8x 43 45 x 36
2.0x 10x – 302.4x 29 37 x 27
Wide-field lenses
2 Dioptre 0.8x – 24x 500 600 x 350
3 Dioptre 1.15x – 32.6x 330 420 x 250
4 Dioptre 1.71x – 51.41x 245 293 x 171
5 Dioptre 2.12x – 65.5x 197 232 x 135
Micro objectives
5x 250x – 362x 21 2.1 x 1.3
10x 500x – 725x 22 1.0 x 0.65

With 360° Optical Viewer*

Setting Magnification range (24” monitor) Working Distance (mm) Max Field of View (mm) Viewing Angle Zoom ratio
360° Rotating View 19x – 105x 35.5 26 x 22 34° 5.3x
Direct View 28x – 151x 56.5 20 x 11 N/A 5.3x

* Only compatible with EVO Cam II model

Illumination
Built in 8pt LED ring light for shadow-free illumination. Colour temperature 5500K.
Optional
White and UV quadrant ring light For inspection of UV fluorescing subjects e.g. conformal coatings
Sub-stage illumination For translucent subjects, perforated subjects etc.
Flexible illuminator Twin flexible bar-lights to extend control of the effects reflections and shadows.
EPI illuminator Through-the-lens episcopic illumination to simplify inspection of bores, pipes, tubes, slots, and holes.
Camera
Camera zoom 30x optical; 12x digital
Camera resolution Full-HD 1080p, 1920 x 1080, 1/2.8″ CMOS
Frame rate 50fps & 60fps (switchable)
Focus Auto focus and manual focus
Output HDMI et USB 3.0
Saved file type .png
Feature EVO Cam II EVO Cam ICON
Image capture & playback
Auto focus and manual focus
Remote control option
Single-point calibration/measurement
Multi-point calibration/measurement x
Focus stacking x
Overlays x
Set zoom limits x
Set meta data x
Supervisor mode x
Image comparison x
Stand Options

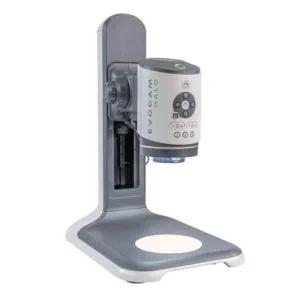

Ergo stand EVO Cam Icon digital microscope on Ergo stand with substage illuminationSmall footprint, high stability for high magnification use. Optional sub-stage illumination. Floating stage can be fitted. Small monitor mount can be fitted.
Multi-axis stand EVO Cam digital microscope on multi axis standPrecise and robust. Ideal for industrial application where maximum work space is required. Counter-balanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available). Small monitor mount can be fitted.
Double boom stand EVO Cam II digital microscope on double arm boom standFor stability and extended reach. Available with direct mounting to work surface or platform base.
Single-arm boom stand EVO Cam digital microscope on single arm boom standHigh stability, large working distance range, heavy duty platform base.
Articulated arm stand EVO Cam digital microscope on articulated arm standExtended reach and ultimate flexibility to allow precise positioning.
Crescent stand ECO Cam Icon on Crescent standOffers continuous height adjust with precision control.
Verso stand EVO Cam ICON digital microscope on Verso standConvenient swing arm for flexibility and to keep work area clear when microscope is not in use.

On-board camera, lighting and zoom controls are standard. Also includes tools for: using overlays, grids, cursors, calibration & dimensioning. Focus Stacking is optionally available.

When connected to a PC, there are several options:

Software Options
DimensionOne Image capture, annotation, on-screen measurement.
DimensionTwo Image capture, annotation, on-screen measurement, camera control.
VifoxEVO Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
ViPlus Image capture, annotation, on-screen measurement, camera control, reporting.
  • Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
Accessories
Remote control console For hand-held camera control; improves user confort and includes quick access to pre-sets.
Floating stage For smooth and precise control. For use with Ergo stand and Bench stand only.
Filters A range of filters are available to enhance details and contrast: including colour temperature and polarisers.
Ergo stand monitor mount For mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint and easy adjustment.
Multi-axis stand monitor mount For mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint, easily adjustable, and can move with the stand height adjustment.
Contrast Enhancing Base To optimise lighting for a variety of transparent and translucent samples, enhancing the observed contrast. (Brochure PDF).
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider

EVO Cam Series

Capable. Powerful. Adaptable.

Frequently asked questions

Below you can find some of the most common questions.

Can I use EVO Cam for simple measurement?2024-08-28T15:03:02+00:00

Yes. EVO Cam II can be used to perform simple measurements, with customisable overlay grid and cursors. Sometimes called dimensioning.

Do I need training before using EVO Cam?2024-08-28T15:02:11+00:00

No. EVO Cam’s intuitive controls makes it easy to use from the start.

How are images captured using EVO Cam?2024-08-28T15:04:54+00:00

Image can be captured either direct to a USB memory stick, via a PC connected through the supplied USB3 port and cable, or via an optional HDMI image capture device

What is the file format of the captured image?2024-08-28T15:08:56+00:00

EVO Cam captures images in PNG (Portable Network Graphics) and JPEG formats. PNG images do not lose information caused by compression, maintaining maximum detail in the saved image. JPEG offers three levels of compression to allow control over saved file size. EVO Cam saves images with an automatic sequence number.

What is the maximum magnification for EVO Cam?2024-08-28T15:06:35+00:00

Maximum optical magnification is 754x, when displayed on a 24″ monitor. When combined with the EVO Cam’s 12x digital zoom the magnification increases to 9,000x.

Magnification is a combination of the optical configuration, digitally applied magnification and the size of the display screen. By changing the either of these components the magnification of the system is changed.

For more frequently asked questions please visit the our support page.

EVO Cam II digital microscope on Ergo stand with remote control console

EVO Cam II Ergo Stand

  • High stability, small footprint stand
  • Ideal for high magnification use
  • Substage illumination option, course and fine focus
EVO Cam II digital microscope on multi-axis stand

EVO Cam II Multi-axis Stand

  • Precise and robust, ideal for industrial applications
  • Integrated gas strut for quick, effortless operation
  • Platform base or direct mounting to bench
EVO Cam II digital microscope with 360° viewer on bench stand

EVO Cam II With 360° Viewer

  • 360° rotating view
  • View all around the subject quickly and easily up to 105x
  • Rapid switching between rotating and direct view
EVO Cam II digital microscope on extra long articulated arm mounted above monitor

EVO Cam ICON Long Working Distance

  • Wide field lenses offer maximum flexibility
  • Large zoom range, up to 500mm working distance
  • Ideal for large area subjects
Close up of EVO Cam II digital microscope front buttons

EVO Cam II With Microscope Objectives

  • Straightforward adaptor enables microscope lenses to be fitted
  • For optical magnification up to 750x
  • Compatible with existing lighting
EVO Cam EVOTIS dedicated PCB inspection workstation

EVO Cam II EVOTIS

  • Advanced inspection workstation
  • For large area subjects such as PCBs and multi-layer components
  • Enables quick and efficient inspection of fine detail
